libwallaby  v24
The wallaby standard library
graphics.h File Reference

Methods for displaying graphics to the screen. More...

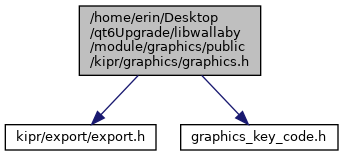

#include "export.h"
#include "vtable.h"
#include "graphics_key_code.h"

Go to the source code of this file.

Typedefs

typedef enum Encoding Encoding


Enumerations

enum  Encoding { RGB, BGR }


Functions

VF EXPORT_SYM int graphics_open (int width, int height)

VF EXPORT_SYM void graphics_close ()

VF EXPORT_SYM void graphics_update ()

VF EXPORT_SYM void graphics_clear ()

VF EXPORT_SYM void graphics_blit (const unsigned char *data, int x, int y, int width, int height)

VF EXPORT_SYM void graphics_blit_region (const unsigned char *data, int sx, int sy, int ex, int ey, int width, int height, int dx, int dy)

VF EXPORT_SYM void graphics_blit_enc (const unsigned char *data, Encoding enc, int x, int y, int width, int height)

VF EXPORT_SYM void graphics_blit_region_enc (const unsigned char *data, Encoding enc, int sx, int sy, int ex, int ey, int width, int height, int dx, int dy)

VF EXPORT_SYM void graphics_fill (int r, int g, int b)

VF EXPORT_SYM void graphics_pixel (int x, int y, int r, int g, int b)

VF EXPORT_SYM void graphics_line (int x1, int y1, int x2, int y2, int r, int g, int b)

VF EXPORT_SYM void graphics_circle (int cx, int cy, int radius, int r, int g, int b)

VF EXPORT_SYM void graphics_circle_fill (int cx, int cy, int radius, int r, int g, int b)

VF EXPORT_SYM void graphics_rectangle (int x1, int y1, int x2, int y2, int r, int g, int b)

VF EXPORT_SYM void graphics_rectangle_fill (int x1, int y1, int x2, int y2, int r, int g, int b)

VF EXPORT_SYM void graphics_triangle (int x1, int y1, int x2, int y2, int x3, int y3, int r, int g, int b)

VF EXPORT_SYM void graphics_triangle_fill (int x1, int y1, int x2, int y2, int x3, int y3, int r, int g, int b)

VF EXPORT_SYM int get_key_state (enum KeyCode key)

VF EXPORT_SYM void get_mouse_position (int *x, int *y)

VF EXPORT_SYM int get_mouse_middle_button ()

VF EXPORT_SYM int get_mouse_left_button ()

VF EXPORT_SYM int get_mouse_right_button ()


Detailed Description

Methods for displaying graphics to the screen.

functions for adding alphameric characters to graphics windows.

Author
Braden McDorman

These are functions for adding alphameric characters (caps only) to graphics windows. The functions were extracted from a graphing package written by D.Miller Oct 2008. Character generation capabilities were extended from 7-segment to 16-segment and enhanced to include basic punctuation characters, plus size and bold-face options by C.Winton Oct 2008.

Author
C.Winton

Typedef Documentation

◆ Encoding

typedef enum Encoding Encoding

Enumeration Type Documentation

◆ Encoding

enum Encoding
Enumerator
RGB
BGR

Function Documentation

◆ graphics_blit()

VF EXPORT_SYM void graphics_blit ( const unsigned char *  data,
int  x,
int  y,
int  width,
int  height
)

This function is equivalent to calling graphics_blit_enc() with an encoding of RGB

See also
graphics_blit_enc

◆ graphics_blit_region()

VF EXPORT_SYM void graphics_blit_region ( const unsigned char *  data,
int  sx,
int  sy,
int  ex,
int  ey,
int  width,
int  height,
int  dx,
int  dy
)

This function is equivalent to calling graphics_blit_region_enc() with an encoding of RGB

See also
graphics_blit_region_enc
